CPU

Multiple cores

GPU

Memory

16/32 GB

Storage

OS/AP
Media Video

2 x 120GB SSD in Raid-1 mirror
8 x SATA or SAS hot-swap HDD storages
12 x SATA or SAS hot-swap HDD storages

Raid control

Hardware Raid 0, 1, 10(1E), 3, 5, 6, 30, 50, 60

DVD R/W drive

SATA interface (8 bays disk model)

USB

3.0x6
2.0x2

Audio

MIC-in/Speaker-out

COM

RS232

Ethernet IO

2x GbE
2x10 GbE copper (HA Optional)
4x GbE copper (HA Optional)

Display

DVI, HDMI, DP
Total 3 independent displays

OS

Linux

Specific iSCSI functionality

Multiple LUNs per iSCSI Target
CHAP/ Mutual CHAP User Management
SCSI-3 Persistent Reservation support with sync between two cluster nodes Active-Active iSCSI Failover
Built-in Active-Passive Failover configuration (cluster functionality)

Application Software

iSCSI protocol
NAS storage system
High Availability (HA Optional)

Network clients

Microsoft Windows, Linux, UNIX, Mac OS 8.0-10.5.8, X

Network file protocols

SMB/CIFS, FTP, Secure FTP, HTTP, Apple Talk, NFS v3

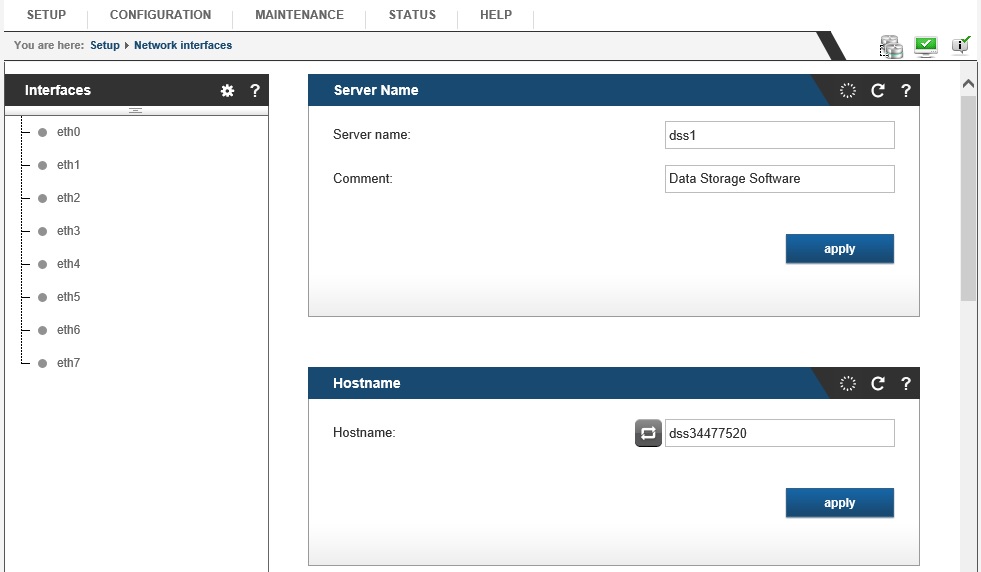

Remote control

Through Web browser

Monitoring

S.M.A.R.T - monitoring system for hard disc drive failures
SnMP v2, v3
Hardware monitoring

System Fan

4x 8cm

System Health status

IPMI port

Power Supply

500W, AC 100V~240V, 50/60hZ
Redundant 800W power (optional), hot-swap, AC 100V~240V, 50/60hZ

LED

Power on/off, HDD, Ethernet

Certificate

FCC, CE, ROHS Compliant

Working Environment

Temperature

0~50℃

Indoor

Humidity

8% ~ 90%, non-condensing

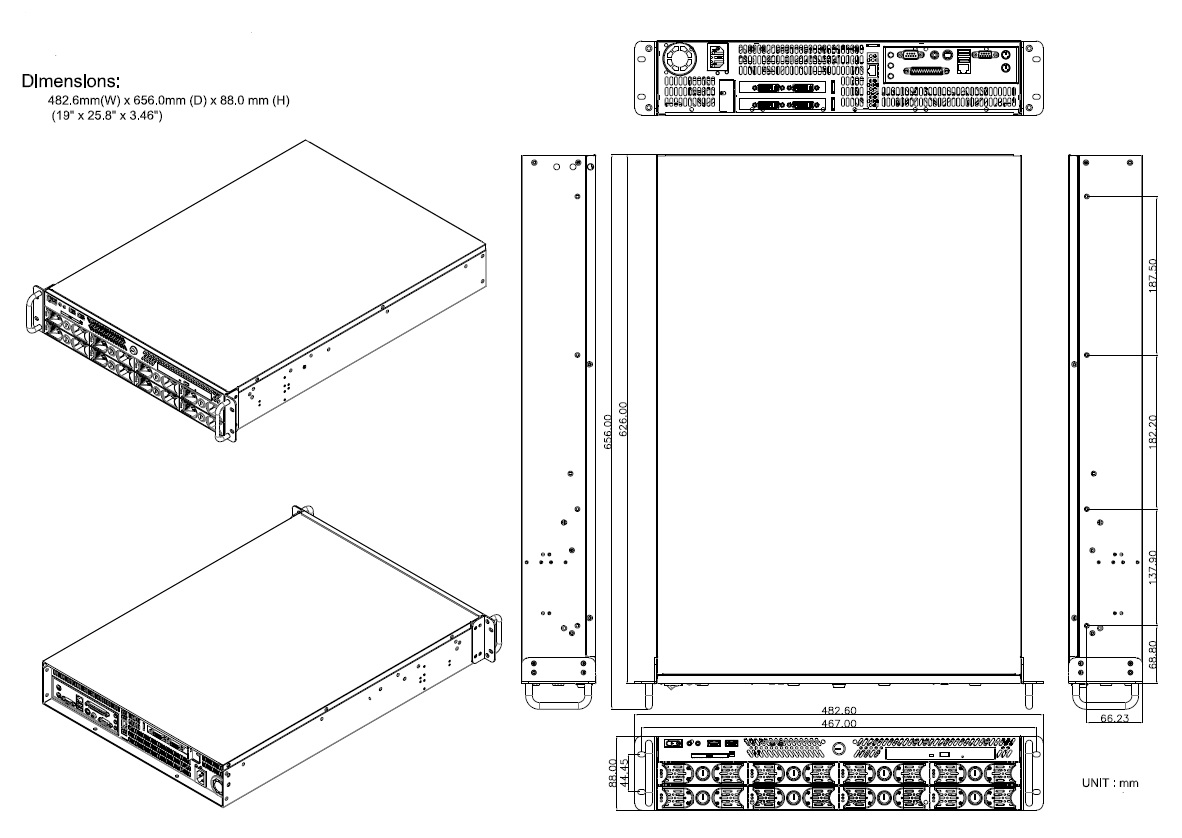

Physical

Dimension

19" 2U rack
482(W)x 88(H)x 656(D) mm

Net Weight       20Kg

 Description

Order NO.

Basic

2U-8 bays NAS application software

T504-H-32-8-1X

2U-12 bays NAS application software

T504-H-32-12-1X

HDD 3.5" SATA 10/8/6/4TB storage

HDD 3.5" SAS storage

HDD 2.5" SAS storage

HDD 3.5" to 2.5" Converter

High Availability solution

UPS
