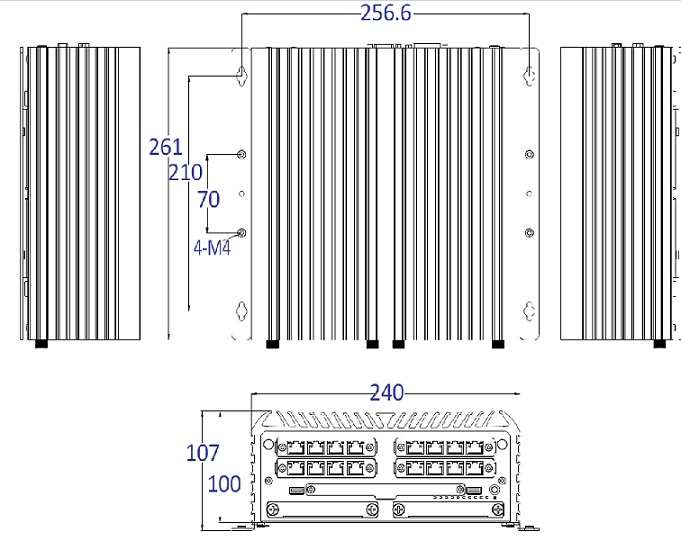

Dimension of the Drawing
Recording Calculation Table
System bootup IP cameras VMS detection screen shot
Technical Spec
Cameras |
|
IP with PoE, expand total to 64 IP cameras |
|
CPU |
|
Multiple cores |
|
GPU |
|
Build-in | |
Memory |
|
16 GB |
|
Storage |
OS/AP |
2 x 64GB SSD redundant |
|
USB |
|
3.0x6 |
|
Audio |
|
MIC-in/Speaker-out |
|
COM |
|
RS232/422/485 x2 |
|
PoE |
|
Mode A, 16 ports, IEEE802.3af/802.3at |
|
Ethernet IO |
|
GbE1, support Wake-on LAN, PXE |
|
Wireless |
|
Wi-Fi (Optional) |
|
Display |
|
DVI |
|
Alarm |
|
DI x8, DO x8 |
|
OS |
|
Win10 -64 |
|
Application Software |
|
VMS engine, Recording/Playback/Live view |
|
Recording rate |
|
Max 200Mbits/second | |
API |
|
Digital IO or Watchdog sample code |
|
Shock/Vibration |
|
50G half sine 11ms / HDD 1Gms | |
Power Supply |
Input |
9~48V DC, 3 pin terminal block , AC to DC adapter 600W |
|
Power Protection |
|
Over Voltage, Over Current, Reverse |
|
LED |
|
Power on/off, HDD, Ethernet |
|
Certificate |
|
FCC class A /CE, ROHS Compliant |
|
Working Environment |
Temperature |
-25~70℃ |
Indoor or outdoor |
Humidity |
10% ~ 95%, non-condensing |
|
|
Physical |
Dimension |
|
|
Net Weight 8Kg |
|
Order information
Product item | Description |
Order NO. |
Basic |
16 ports POE with VMS software, power adapter |
T504-POE-16 |
Optional | HDD 4x 320GB/500GB/1TB/2TB storage |
|
NAS storage |
|
|
PoE management switch |
|
|
Wi-Fi wireless |
|
|
RS485 to 232 converter |
|
|
PSIM application software |
|
|
ANPR/LPR application software |
|
|
Face Recognition application software |
|
