Input Stream card
I/O Interface Table
VIDEO OUTPUTS\MODEL |
SDI-12G |
SDI-3G |
SDI-HD |
HDMI |
12G-SDI 1x display card |
|
|
|
|
3G-SDI 4x display card |
|
|
|
|
HD-SDI 8x display card |
|
|
|
|

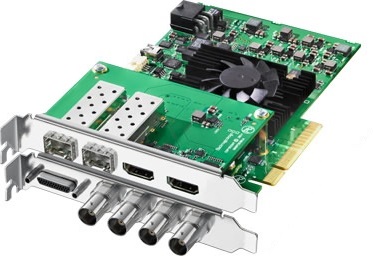

HDMI 4Kp60 1x display card |
|
|
|
|
Copper GbE 4x NIC port |
|
|
|
|

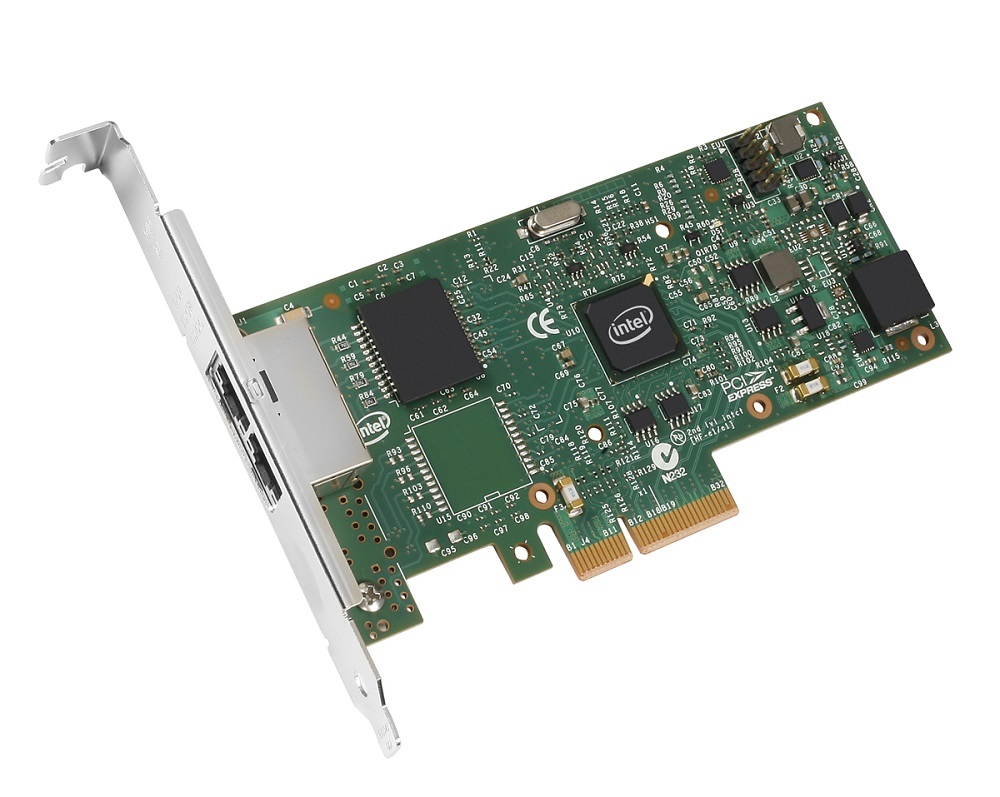

(Optional) Fiber GbE 2x NIC card |
|
|
|
|
(Optional) DVB-ASI 4x In card |
|
|
|
|

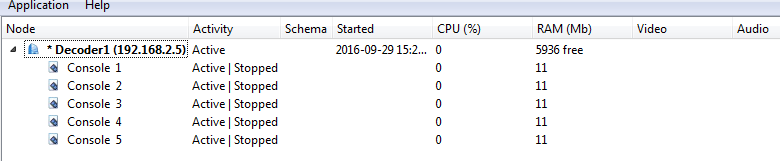

System bootup screen shot & Web server
Technical Spec
CPU |
|
Multi cores |
Memory |
|
16 GB |
Video Display |
Output |
12Gb Single or Dual/Quad link /3G/HD-SDI or |
|
Audio |
Output |
Embedded SDI 64 channels 4K |
|
Storage |
OS/AP |
SSD x2 Redundant |
|
Ethernet IO, DVB IO |
GbE x4 |
||
Serial IO |
|
RS232 |
|
Display Monitor |
|
VGA port |
|
USB |
|
3.0x2 |
|
OS |
|
WES10-64 |
|
Application Software |
|
Demultiplex, HEVC/H264/MPEG-2 decoder, Display |
|
Compressed stream |
HEVC/H264/MPEG-2 MPTS/SPTS over IP, UDP/RTP |
||
Video resolution |
Input |
2160p60/59.94/50/30/29.97/25/24, 1080p60/50/30/29.97/25/24, 720p60/59.94/50, SD29.97/25 |
|
Video Decoding |
HEVC 4:2:0 Main 8/10 profiles |
||
Audio Decoding |
MPEG-2 AAC, Mono/Stereo PCM |
||
Redundant |
|
N+M |
|
Remote Management |
|
Build-in Web Server HTTP, SNMP and command line |
|
Power Supply |
|
500 Watts Redundant (1+1) Hot-Swap 100~ 240V AC input, 50-60HZ |
|
LED |
|
Power/Status/HDD |
|
Switch |
|
Power |
|
System Fan |
|
4 cm x4 |
|
Certificate |
|
FCC class A /CE, ROHS Compliant |
|
Working Environment |
Temperature |
10~35℃ |
Indoor |
Humidity |
8% ~ 90%, non-condensing |
|
|
Physical |
Dimension |
437x 43x 650 mm |
|
System Order information
| Product item | Description |
Order NO. |
Basic T603D4 |
1U 12G-SDI system, 1 output display |
T603D4-1-SDI-uHDp60 |
1U 6G-SDI system, 2 output display |
T603D4-2-SDI-uHDp30 |
|
|
1U 3G-SDI system, 4 outputs display |
T603D4-4-SDI-HDp60 |
|
1U HD-SDI system, 8 outputs display |
T603D4-8-SDI-HDp30 |
1U HDMI2.0 system, 1 output display |
T603D4-1-HDMI-uHDp60 |
|
| Optional | Fiber GbE NIC card, 2 inputs |
|
|
DVB-ASI, 4 inputs stream |
|
Multi audio pairs decoding |
|
|
Management |
1U Multiple machines manage system |
T600 |
