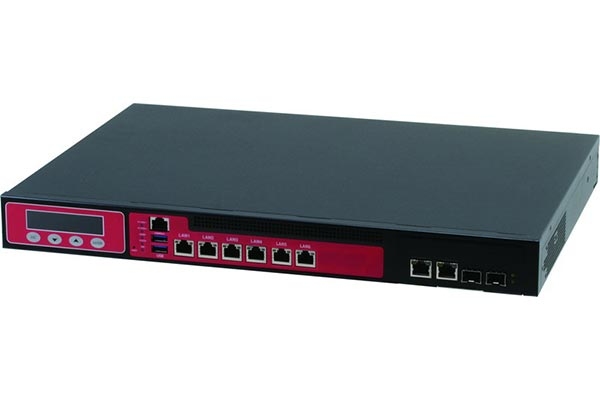

HD-p30 Live H265 Transcoder

VIDEO INPUTS\MODEL

 IP

 HDMI-HD-30

SDI-HD-30

ANALOG

 ASI

DVI

IP GbE 6 In/Outputs

HDMI 1080p30 capture card

SDI-1080p30 Capture card

Analog CVBS 8x Capture card

DVB-ASI 4x Inputs card

DVI Capture card

(Optional) DVB-ASI Out card

(Optional)Media storage, 2 x SSD

GPU

Build-in hardware

Memory

4 GB

Video capture Interface

Input

HD-SDI, HDMI, DVI, Analog CVBS x4
Color sample 4:2:2, YUV 8/10 bit

Audio

Input

8 channels embedded SDI
8 channels embedded HDMI

Storage

OS/AP
Media

2.5" SSD x2 Redundant
2.5" SSD (OTT/HLS Optional)

Ethernet IO, DVB-ASI IO

GbE x6 (UDP, RTP, RTSP)
ASI-in x4 , ASI-out x2 (Optional)
Console

USB

3.0x2

Display

VGA

OS

WES10-64

Application Software

De-mux, H264/MPEG2 decoder, Capture, HEVC encoder, Mux,Streaming

Wrappers

Resolution, 1080p24/25/29.97/30, SD, MPEG2-TS  (UDP, RTP)

Video Audio Essences

MPEG2,H264-AVC (Baseline, Main, High), HEVC/H.265 (Main, Main10)
MPEG layer 1/2, AAC-LC/AAC-HEV1/AAC-HEV2, AC-3 Pass through
AC-3/EAC-3 or multi-PCM encoding (Optional)

Preprocessing

Audio level correction, Audio re-sampling, Cropping, Color Correction,
Current time insertion on the video image,
De-interlace, Frame rate conversion, Logo overlay, Picture re-sizing

Video Decoder

MPEG2, H264-AVC, H265

Video Encoder

Profile: HEVC 4:2:0 Main 8, Base/Main/High Tier
Rate Control: VBR, CBR, fixed QP

Quality Performance

Fastest, Fast, Higher, Highest, Auto

Streaming Output

MPEG2-TS UDP/RTP
HTTP Live streaming Apple HLS
RTSP
MPEG-DASH
RTMP

Streaming input

MPEG2-TS UDP/RTP
HTTP Live streaming Apple HLS
RTSP
MPEG-DASH

Remote Management

Build-in embedded Web Server, SNMP and command line

LCM

2 x 20 characters

Power Supply

250 Watts 100~ 240V AC input, 50-60HZ

LED

Power/Status/HDD

Switch

Power (rear)

System Fan

4 cm x2

Certificate

FCC class A /CE, ROHS Compliant

Working Environment

Temperature

0~40℃

Indoor

Humidity

5% ~ 90%, non-condensing

Vibration:

0.5G / 5 to 100 Hz

Shock

10G / 11ms in all axis

MTBF

Over 90,000 hours

Physical

Dimension

430x 44x 305 mm

 Description

Order NO.

Basic T603E1

1U IP GbE system, 6 in/outputs Source

T603E1-6-IP-GbE

1U HDMI HD30 system, 1 input Source

T603E1-1-HDMI-HD30

1U HD-SDI system, 1 input Source

T603E1-1-SDI-HD30

1U DVI system, 1 input Source

T603E1-1-DVI-HD30

1U Analog CVBS system, 8 inputs Source

T603E1-8-CVBS-SD

1U ASI system, 4 inputs Source

T603E1-4-ASI-SD

Optional

DVB-ASI card, 2 outputs

Media storage, 2 x SSD

Dolby Digital (AC-3), Dolby Digital Plus (EAC-3) or multi-PCM encoding

Management

1U Multiple machines manage system

T600
